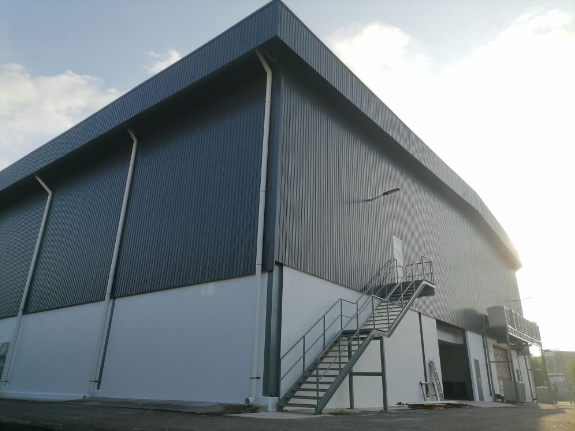

Advanced 55,000 Sq Ft Manufacturing Plant
Our wholly owned, two-storey semi-detached factory facility in Taman Batik, Sungai Petani is purpose-built to scale automated contract assembly safely.
Wholly owned two-storey semi-detached facility optimized for concurrent SMT and box-build assembly pipelines.
Dedicated climate and airborne particulate controlled cleanroom environment for high-reliability component rework and repair.
Asymmetric floor architecture supporting rapid configuration changes from low-volume prototypes to high-volume OEM mass production.
Production stations and static dissipation zones built strictly to global IPC-A-610 electronic assembly workmanship standards.
Internationally Recognised Standards

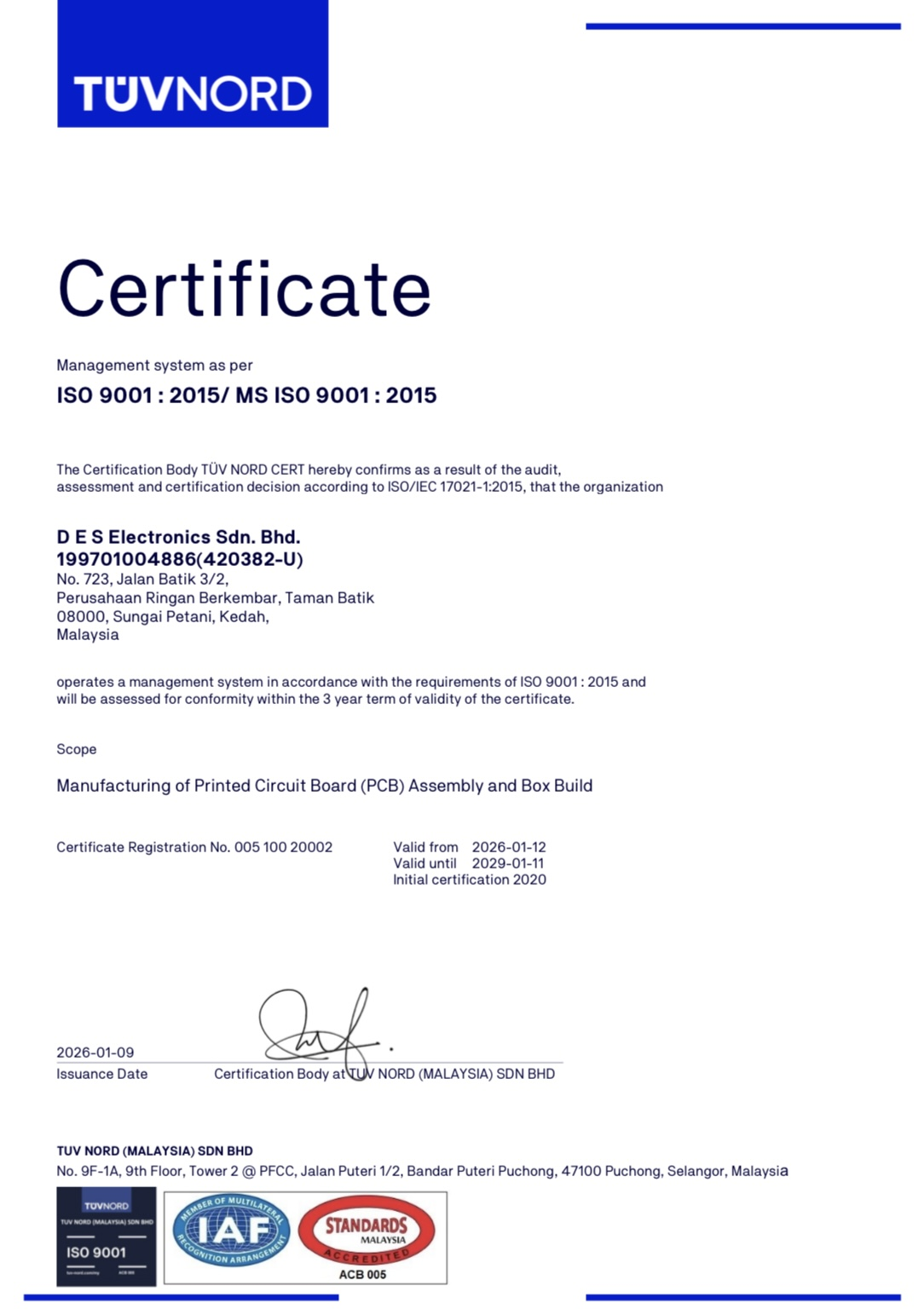

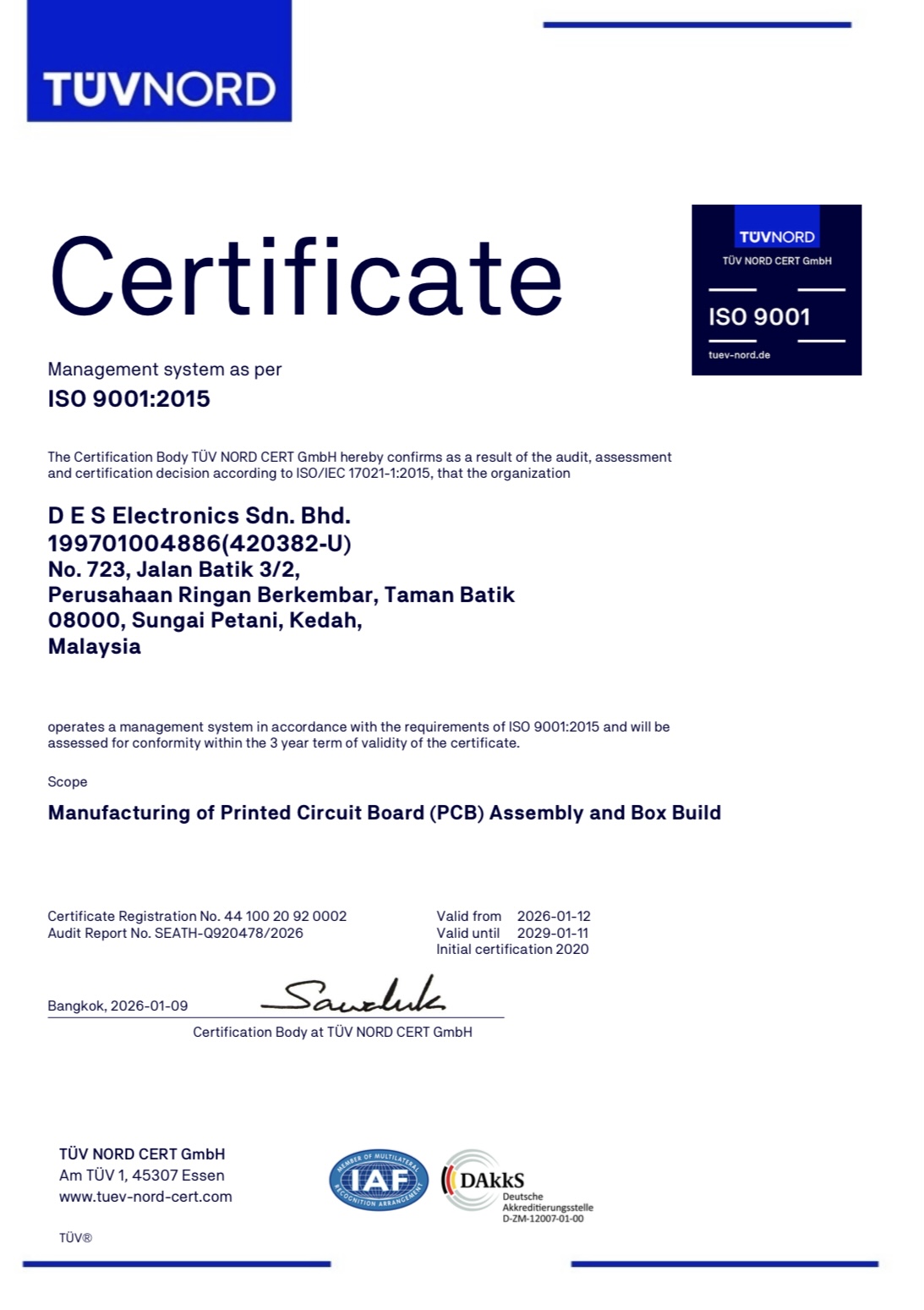

DES Electronics holds ISO 9001:2015 certification issued by TÜV NORD and is an active IPC member — demonstrating our commitment to consistent quality management and industry best practices.
Scope: Provision of Printed Circuit Board (PCB) Assembly. Certified since 2016.

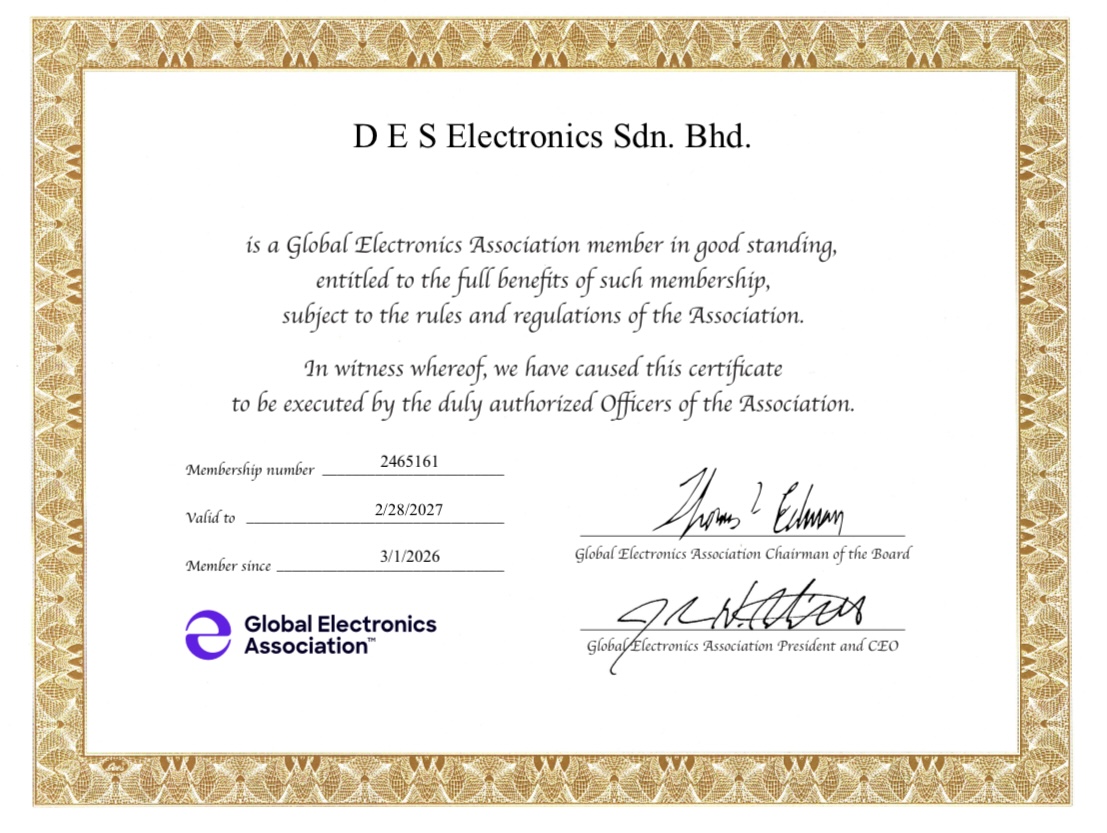

Active Global Electronics Association member. Recognised as a manufacturing success story driving IPC standards adoption in Malaysia.
Advance Production Equipment
01 / Inbound Logistics & Storage System
Unicomp CX7000L X‑Ray SMD Chip Counter
Non‑destructive counting of components inside sealed reels, trays or tubes; no packaging opening needed; fast and accurate inventory verification.
Counts all standard SMD sizes; supports reel diameters up to 500mm; accuracy >99.9%; high‑speed scanning; real‑time result display
IMS Incoming Material Station 2.0
Automated SMT material receiving, barcode verification and inventory registration.
Maximum reel diameter of 15 inches (381 mm).
Juki ISM3600 Automated Smart Component Storage System
Intelligent storage, retrieval, humidity control and inventory tracking; eliminates material errors.
Up to 3,600 storage locations (configuration dependent); real‑time monitoring.
02 / Production & Assembly
RIGHT R460H PCB Laser Marking System
High‑precision permanent marking for identification and traceability; non‑contact processing.
Board size up to 600mm × 500mm; accuracy ±0.01mm
Juki KSP & Right AMA High‑Performance Solder Paste Printers
High-accuracy stencil printing for fine‑pitch and mixed‑technology boards; consistent paste control.
Board size 50mm × 50mm to 510mm × 510mm; accuracy ±12.5μm @ 6σ.
Juki RS-1R & RS-1XL High‑Speed Modular SMT Placement Machines
Precision placement from 01005 chips to large BGA/CSP/QFP; high‑mix, high‑volume support.
Accuracy ±25μm; board size up to 610mm × 560mm; 47,000 CPH (IPC9850 benchmark).
JT JTR-1000D-N 10‑Zone Nitrogen Reflow Oven
10-zone nitrogen reflow oven with precise thermal profile control for lead-free and high-reliability PCB assemblies.
Temperature uniformity ±1°C; board width up to 510mm; speed 0.2–2.0m/min
KSM ANW-1NL Advanced Selective Wave Soldering
Selective soldering system for through-hole assemblies with programmable soldering parameters, ensuring consistent solder quality while minimizing thermal impact on surrounding components.
Board size up to 800mm × 600mm; programmable parameters
FLEX-400 Precision Selective Soldering Machine
Selective soldering system for through-hole assemblies with programmable soldering parameters, ensuring consistent solder quality while minimizing thermal impact on surrounding components.
Board size up to 400mm × 400mm; programmable parameters
ZM-R6200 BGA Rework Station
Precision replacement and repair of BGA, CSP, QFP; controlled heating; no damage to PCB.
Board size up to 620mm × 450mm; temperature accuracy ±1°C; Supports rework of BGA, CSP, QFN and QFP packages.
CNC PCB Depaneling Machine
High-precision CNC routing for clean, stress-free separation of PCBs; supports complex shapes and tab-routed designs; avoids component damage.
Panel size up to 600mm × 500mm; accuracy ±0.01mm; speed up to 800mm/s; board thickness 0.5–3.2mm.
KSM-M30R-99 N2 Generator Machine
On-site high-purity nitrogen supply for reflow and soldering processes, reducing oxidation and improving solder joint consistency and long-term reliability.
Output 30 Nm³/h; purity ≥99.99%; pressure 0.4–0.7 MPa; dew point ≤ -45°C; 24/7 operation.
03 / Inspection & Testing Systems
04 / Cleaning & Protection
ICT-DI-250 Industrial‑Grade Deionized Water Generator
Generates ultra‑pure DI water (18.2 MΩ·cm); ensures residue‑free cleaning.
250 liters/hour; meets ASTM Type 1 standards
ICT-5600 Full Automated PCBA Cleaning System
Fully automated cleaning; removes flux, oils, contaminants; meets IPC cleanliness standards.
Board size up to 700mm × 600mm; 800 boards/hour
ICT-T550 Automated Selective Conformal Coating Machine
Selective automated coating; protects against moisture, dust, chemicals, and temperature.
Board size up to 750mm × 650mm; thickness 25–200μm; Compatible with acrylic, silicone, polyurethane and UV-curable conformal coatings.
Engineering Disciplines
Our team covers a wide variety of expertise in electrical, electronic, and mechanical fields.
Circuit & Schematic Design
Analog and digital circuit design, schematic capture, and component selection optimised for performance, cost, and manufacturability.
PCB Layout & Routing
Multi-layer PCB layout and routing, including high-frequency, high-current, and mixed-signal board designs.
Embedded Firmware Development
Microcontroller and EPROM firmware development for industrial controls, consumer electronics, and IoT applications.
Test Jig & Fixture Engineering
In-house design and fabrication of functional test jigs, ICT fixtures, and automated test equipment adaptors.
Mechanical & Enclosure Design
Mechanical enclosure design, mould fabrication, and plastic part production to complete the full box-build product.
Quality & Inspection Systems
Visual inspection, automated optical inspection (AOI), functional testing, and ISO 9001:2015 compliant documentation and traceability.
